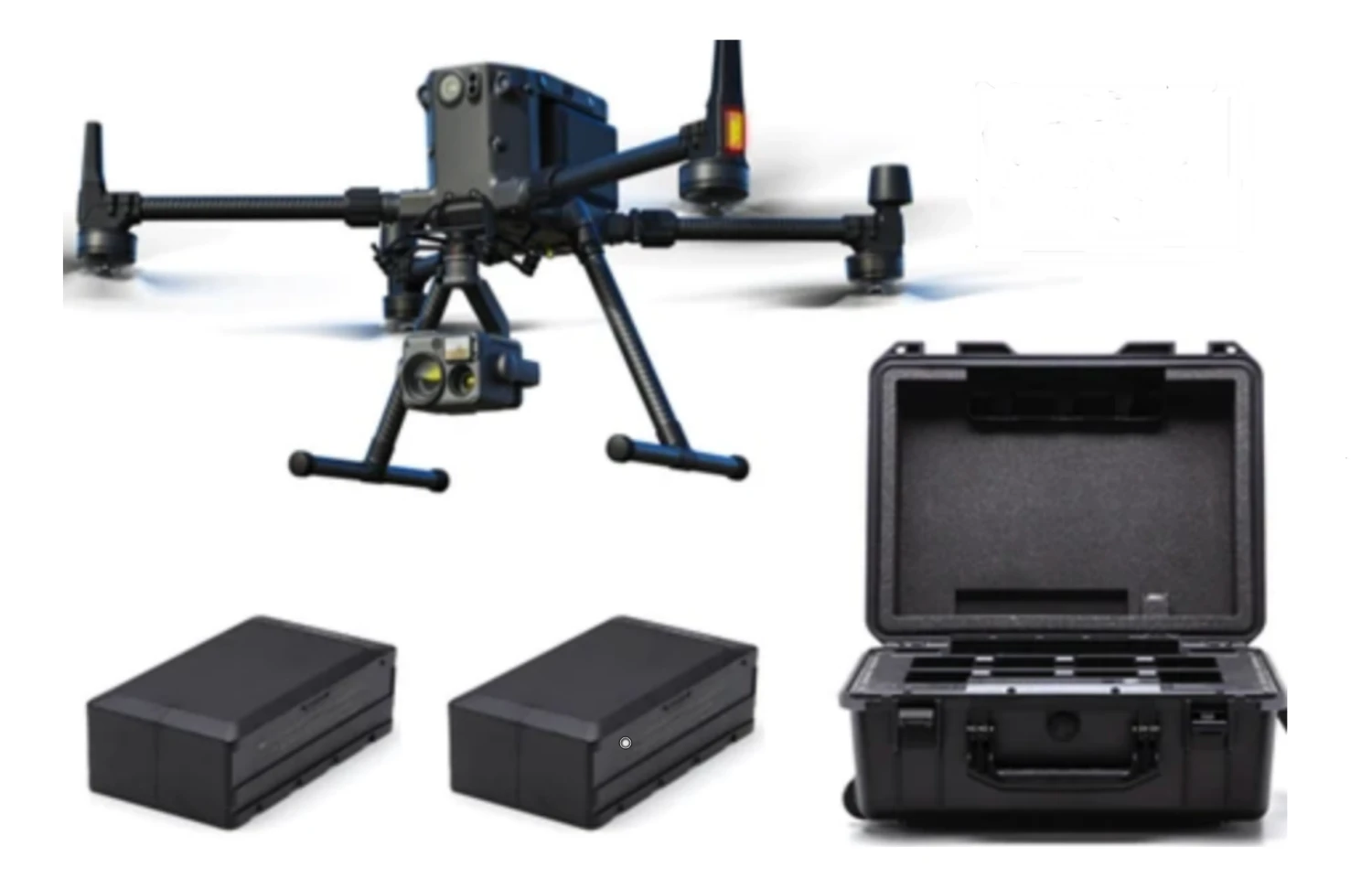

Whats included:
- Aircraft Body × 1
- DJI Smart Controller Enterprise × 1
- USB Charger × 1
- USB-C Cable × 1
- TB60 Intelligent Flight Battery × 2
- WB37 Intelligent Battery × 1
- 2110 Propeller (CW) × 2
- 2110 Propeller (CCW) × 2
- Landing Gear × 2
- Spare Stick Cover (pair) × 1
- Spare Propeller Holder × 2
- Spare Gimbal Damper × 4
- USB Cable (with Double A Ports) × 1
- Vision System Calibration Plate × 1
- Carrying Case × 1
- Smart Controller Lanyard × 1
- Rubber Port Cover (Set) × 1
- Screws and Tools Set × 1
- BS60 Intelligent Battery Station × 1
Built Tough. Works Smart.
Watch Video
-
15 km Max Transmission1 - 55-min Max Flight Time2
- 6 Directional Sensing & Positioning
- Primary Flight Display
- IP45 Rating
- -20°C to 50°C Operating Temperature
- Hot-swappable Battery
- UAV Health Management System
Superior Performance
Improved Transmission System
The all-new OcuSync Enterprise enables transmission up to 15 km away and supports triple-channel3 1080p video. Real-time auto-switching between 2.4 GHz and 5.8 GHz4 enables more reliable flight near high-interference environments, while AES-256 encryption offers secure data transmission.
Transmission Range
Triple-channel Video
Real-time Auto-switching
Enhanced Flight Performance
The refined airframe and propulsion system design gives you a more efficient and stable flight, even in harsh conditions.
Max Flight Time
Max Descend Speed5
Service Ceiling6
Wind Resistance
Max Speed

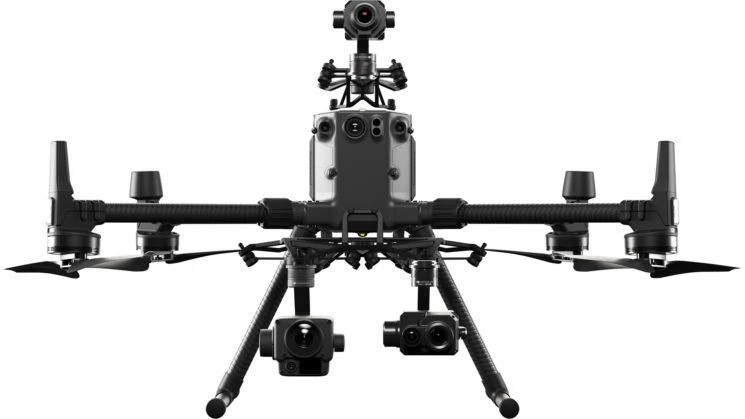

Multiple Payload Configurations
Configure your M300 RTK to fit your mission needs. Mount up to 3 payloads simultaneously, with a maximum payload capacity of 2.7 kg.
Single Downward Gimbal
Single Upward Gimbal x Single Downward Gimbal
Single Upward Gimbal x Dual Downward Gimbals
Advanced Intelligence
Smart Inspection
Live Mission Recording
Record mission actions such as aircraft movement, gimbal orientation, photo shooting, and zoom level to create sample mission files for future automated inspections.
AI Spot-Check7
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the subject of interest and identifies it in subsequent automated missions to ensure consistent framing.
Waypoints 2.0
Create up to 65,535 waypoints and set multiple actions for one or more payloads, including 3rd party ones, at each waypoint. Flightpath planning is also optimized to maximize flexibility and efficiency for your missions.
Smart Pin & Track8
PinPoint
Mark an object in camera or map view with a quick tap, and advanced sensor fusion algorithms will immediately calculate its coordinates, which are projected to all camera views as an AR icon. The location of the subject is automatically shared with another remote controller, or to online platforms such as DJI FlightHub9.
Smart Track
Identify and follow moving subjects like people, vehicles, and boats with the Smart Track function, where auto-zoom is applied for steady tracking and viewing. The subject’s dynamic location is continuously acquired and shared to another remote controller or to DJI FlightHub9.
Aviation-Grade Situational Awareness
The M300 RTK adopts a new Primary Flight Display (PFD) that integrates flight, navigation, and obstacle information to empower the pilot with exceptional situational awareness.
Flight Information
Flight Information
Navigation Display
Navigation Display
Advanced Dual Control
Either operator can now obtain control of the aircraft or payload with a single tap. This creates new possibilities for mission strategies as well as higher flexibility during operations.
Safety and Reliability
A Powerful Vision System You Can Rely On
To enhance in-flight safety and aircraft stability, dual-vision and ToF sensors appear on all six sides of the aircraft, offering a maximum detection range of up to 40 m, with options to customize the aircraft’s sensing behavior via the DJI Pilot App. Even in complex operating environments, this 6 Directional Sensing and Positioning system helps keep the aircraft and the mission safe.
Professional Maintenance for Your Drone Fleet
The new integrated Health Management System displays the current status of all systems, notification logs, and a preliminary troubleshooting guide. Also in the system are the aircraft’s flight logs, duration, and mileage throughout its entire lifecycle, and tips on aircraft care and maintenance.
Redundancy Systems for Safer Flights
The M300 RTK’s built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.
Explore All Redundant Systems in this Report
More Adaptable Than Ever Before
IP45
Self-Heating Battery
-20°C to 50°C
Anti-Collision Beacon
AirSense ADS-B Receiver
Accessories
Battery Station
TB60 Intelligent Flight Battery
DJI Smart Controller Enterprise
D-RTK 2 Mobile Station10
CSM Radar11
Compatible Payloads
Zenmuse H20
Hybrid sensor solution with LRF, zoom and wide camera
Zenmuse H20T
Hybrid sensor solution with LRF, zoom, wide and thermal camera
Zenmuse XT2
Dual-sensor camera with a 4K visual sensor and thermal imaging with <50 mK sensitivity
Zenmuse Z30
30× optical zoom camera ideal for detailed inspections
Third-Party Payloads
For specialized missions and tasks
Flight Time
Estimate your M300 RTK’s flight time based on the payload configuration.
Purpose-built Applications
DJI Pilot
DJI Pilot is developed specifically for enterprise users to unleash the power of their DJI drones. With development made specifically for the M300 RTK, DJI Pilot optimizes your flight capability for peak performance.
DJI FlightHub
DJI FlightHub is a one-stop solution for managing your drone operations, supporting large organizations to effectively scale their aerial operations. Compatible with the M300 RTK, you can integrate FlightHub directly into your existing fleet of DJI drones and leverage its aerial intel across your organization.
Leverage The DJI Ecosystem for Extended Solutions
Payload SDK
Integrate a variety of 3rd party payloads like gas detectors, loudspeakers, multispectral sensors, and more. Payload SDK supports DJI SkyPort, DJI SkyPort V2, and DJI X-Port. These greatly reduce the payload development lifecycle and maximize the potential of your payloads in more diverse scenarios.
Onboard SDK
Harness the full computing power of your M300 RTK. Onboard SDK supports customized development of a wide range of features such as 6 Directional Sensing and Positioning, UAV Health Management System, Waypoints 2.0, and more.
Mobile SDK
With a large network of 3rd party mobile applications, you can unlock the capabilities of your drone platform to meet specialized mission needs. Utilizing Mobile SDK, the M300 RTK supports highly customizable mobile app development.
Applications
Firefighting
Fight fires and save lives without endangering personnel.
Search & Rescue
Act quickly to locate missing people and better plan rescue missions.
Law Enforcement
Quickly assess a situation and plan accordingly while improving officer and bystander safety.
Powerline Inspection
Easily visualize extensive power line networks in remote areas.
Oil & Gas
Conduct inspections of pipelines, well sites, and more while keeping workers away from risky areas.
Footnote
1.Unobstructed, free of interference, when FCC compliant. Maximum flight range specification is a proxy for radio link strength and resilience. Always fly your drone within visual line of sight unless otherwise permitted.
2. Actual flight time may vary because of the environment and payload configurations.
3. Each RC supports two streams. Triple-stream channeling is only supported with dual RC.
4. Due to local policies, some countries do not support 5.8 GHz transmission.
5. Achieved in Forward Flight using S Mode.
6. The service ceiling of 7000 m is achievable with high altitude propellers.
7. This feature is only supported when the aircraft is paired with the Zenmuse H20 Series payloads.
8. This feature is only supported when the aircraft is paired with the Zenmuse H20 Series payloads.
9. Support for location sharing via DJI FlightHub is coming soon.
10. D-RTK 2 Mobile Station for Matrice 200 Series V2 and Phantom 4 RTK can be upgraded to support Matrice 300 RTK.
11. The CSM Radar will be available soon.
12. The Zenmuse XT S is only available in select countries and regions.
Built Tough. Works Smart.
- 15 km Max Transmission
- 55-min Max Flight Time
- IP45 Rating
- Smart Inspection
- Smart Pin & Track
- Primary Flight Display
Specifications:
Aircraft
-
Dimensions
- Unfolded, propellers excluded, 810×670×430 mm (L×W×H)
Folded, propellers included, 430×420×430 mm (L×W×H)
-
Diagonal Wheelbase
- 895 mm
-
Weight (with single downward gimbal)
- Approx. 3.6 kg (without batteries)
Approx. 6.3 kg (with two TB60 batteries)
-
Max Payload
- 2.7 kg
-
Max Takeoff Weight
- 9 kg
-
Operating Frequency
- 2.4000-2.4835 GHz
5.725-5.850 GHz
-
EIRP
- 2.4000-2.4835 GHz:
29.5 dBm (FCC); 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)5.725-5.850 GHz:
28.5 dBm (FCC); 12.5dBm (CE)
28.5 dBm (SRRC)
-
Hovering Accuracy (P-mode with GPS)
- Vertical:
±0.1 m (Vision System enabled)
±0.5 m (GPS enabled)
±0.1 m (RTK enabled)Horizontal:
±0.3 m (Vision System enabled)
±1.5 m (GPS enabled)
±0.1 m (RTK enabled)
-
RTK Positioning Accuracy
- When RTK enabled and fixed:
1 cm+1 ppm (Horizontal)
1.5 cm + 1 ppm (Vertical)
-
Max Angular Velocity
- Pitch: 300°/s, Yaw: 100°/s
-
Max Pitch Angle
- 30° (P-mode, Forward Vision System enabled: 25°)
-
Max Ascent Speed
- S mode: 6 m/s
P mode：5 m/s
-
Max Descent Speed (vertical)
- S mode: 5 m/s
P mode：3 m/s
-
Max Descent Speed (tilt)
- S Mode: 7 m/s
-
Max Speed
- S mode: 23 m/s
P mode：17 m/s
-
Service Ceiling Above Sea Level
- 5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg)
-
Max Wind Resistance
- 15 m/s
-
Max Flight Time
- 55 min
-
Supported DJI Gimbals
- Zenmuse XT2/XT S/Z30/H20/H20T
-
Supported Gimbal Configurations
- Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals
-
Ingress Protection Rating
- IP45
-
GNSS
- GPS+GLONASS+BeiDou+Galileo
-
Operating Temperature
- -20°C to 50°C (-4°F to 122° F)
Remote Controller
-
Operating Frequency
- 2.4000-2.4835 GHz
5.725-5.850 GHz
-
Max Transmitting Distance (unobstructed, free of interference)
- NCC/FCC: 15 km
CE/MIC: 8 km
SRRC: 8 km
-
EIRP
- 2.4000-2.4835 GHz:
29.5 dBm (FCC) 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)5.725-5.850 GHz:
28.5 dBm (FCC); 12.5dBm (CE)
20.5 dBm (SRRC)
-
External battery
- Name: WB37 Intelligent Battery
Capacity: 4920 mAh
Voltage: 7.6V
Type: LiPo
Energy: 37.39Wh
Charging time (using BS60 Intelligent Battery Station): 70 minutes (15°C to 45°C); 130 minutes (0°C to 15°C)
-
Built-in battery
- Type: 18650 lithium ion battery (5000 mAh @ 7.2 V)
Charging: Use a USB charger with specification of 12V / 2A
Rated power: 17 W
Charging time: 2 hours and 15 minutes (Using a USB charger with specification of 12V / 2A)
-
Battery Life
- Built-in battery: Approx. 2.5h
Built-in battery+External battery: Approx. 4.5h
-
USB Power Supply
- 5 V / 1.5 A
-
Operating Temperature
- -20°C to 40°C (-4 °F to 104 °F)
Vision System
-
Obstacle Sensing Range
- Forward/Backward/Left/Right: 0.7-40m
Upward/Downward: 0.6-30m
-
FOV
- Forward/Backward/Downward: 65° (H), 50° (V)
Left/Right/Upward: 75°(H), 60°(V)
-
Operating Environment
- Surfaces with clear patterns and adequate lighting (> 15 lux)
Infrared ToF Sensing System
-
Obstacle Sensing Range
- 0.1-8m
-
FOV
- 30° (±15°)
-
Operating Environment
- Large, diffuse and reflective obstacles (reflectivity >10%)
Top and bottom auxiliary light
-
Effective lighting distance
- 5 m
FPV Camera
-
Resolution
- 960p
-
FOV
- 145°
-
Frame rate
- 30 fps
Intelligent Flight Battery
-
Name
- TB60
-
Capacity
- 5935 mAh
-
Voltage
- 52.8 V
-
Battery Type
- LiPo 12S
-
Energy
- 274 Wh
-
Net Weight
- Approx. 1.35 kg
-
Operating Temperature
- -4°F to 122°F (-20°C to 50°C)
-
Ideal storage temperature
- 71.6°F to 86°F (22°C to 30°C)
-
Charging Temperature
- -4°F to 104°F (-20°C to 40°C)
(When the temperature is lower than 5°C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
-
Charging time
- Using BS60 Intelligent Battery Station:
220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%)
110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%)
BS60 Intelligent Battery Station
-
Dimensions
- 501*403*252mm
-
Net Weight
- 8.37kg
-
Maximum Capacity
- TB60 Intelligent Flight Battery × 8
WB37 Intelligent Battery × 4
-
Input
- 100-120 VAC, 50-60 Hz / 220-240 VAC, 50-60 Hz
-
Max. Input Power
- 1070W
-
Output Power
- 100-120 V: 750 W
220-240 V: 992 W
-
Operating Temperature
- -4°F to 104°F (-20°C to 40°C)
