D-RTK 3 Multifunctional Station – DronePoint Canada

Overview

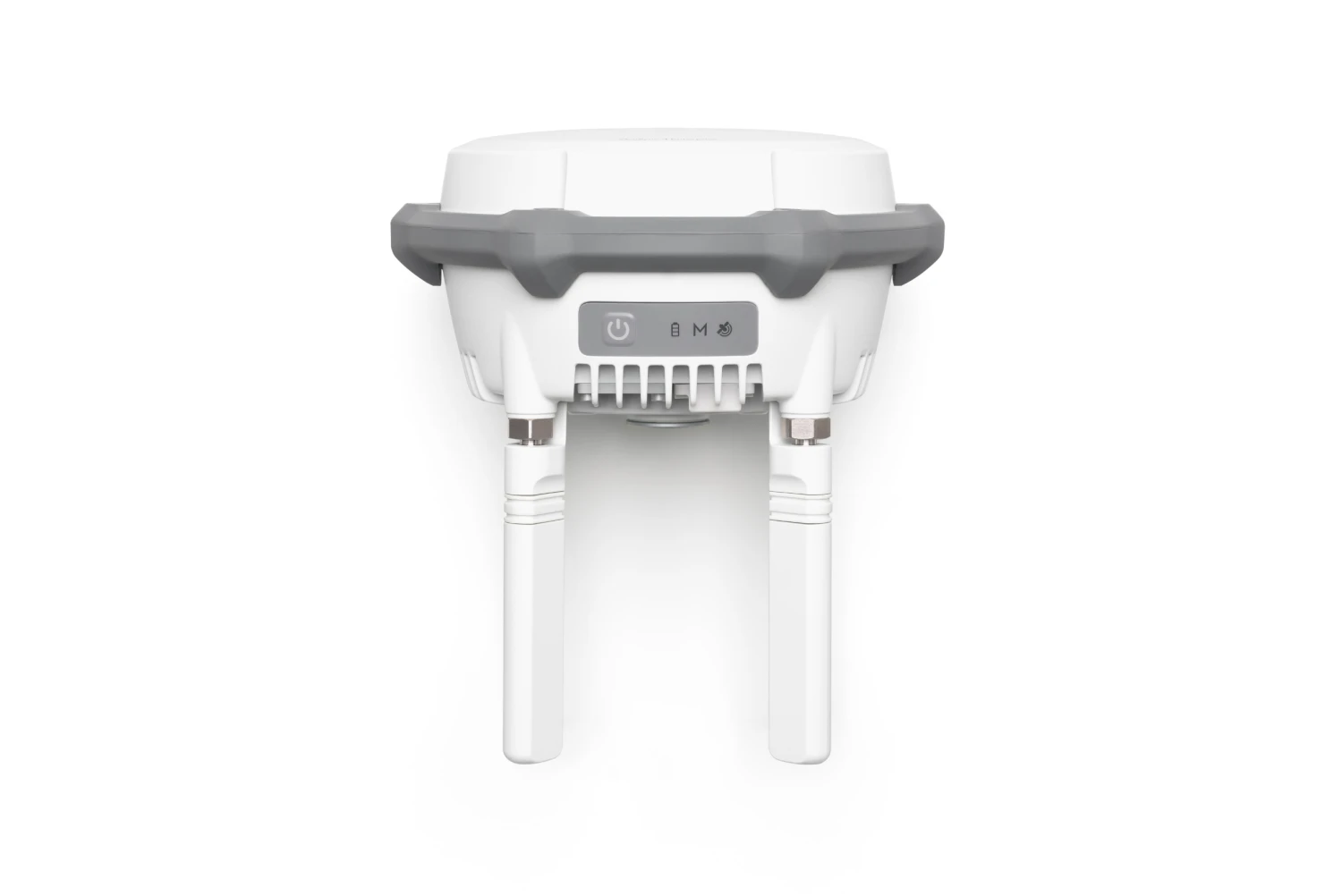

The new D-RTK 3 Multifunctional Station integrates high-performance antennas and receiver modules, capable of tracking and resolving data from major global satellite navigation systems. It supports multiple data transmission links and can analyze device position and orientation through its built-in high-performance inertial measurement unit. With these outstanding features, it can serve as a base station to provide centimeter-level positioning for multiple drones simultaneously, or extend the operational range of drones in relay station mode. Additionally, the new rover station mode, combined with the DJI ENTERPRISE app and DJI Terra, offers a one-stop solution for high-precision aerial surveying applications.

Highlights

Serves as a base station for centimeter-level positioning of multiple drones simultaneously, or as a relay station to extend drone range.

Tips

1. Measurement accuracy depends on various factors. This value is obtained under normal conditions with an unobstructed view, good satellite distribution, low ionospheric activity, and no electromagnetic interference or multipath effects.

2. Intense vibrations and rapid rotations can affect the accuracy of the inertial measurement unit.

3. The relay station should be placed in a high, unobstructed location to ensure clear communication between the remote controller and the aircraft.

4. Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the app during your flight.

5. Please make sure all rubber plug interfaces on the body are properly installed.

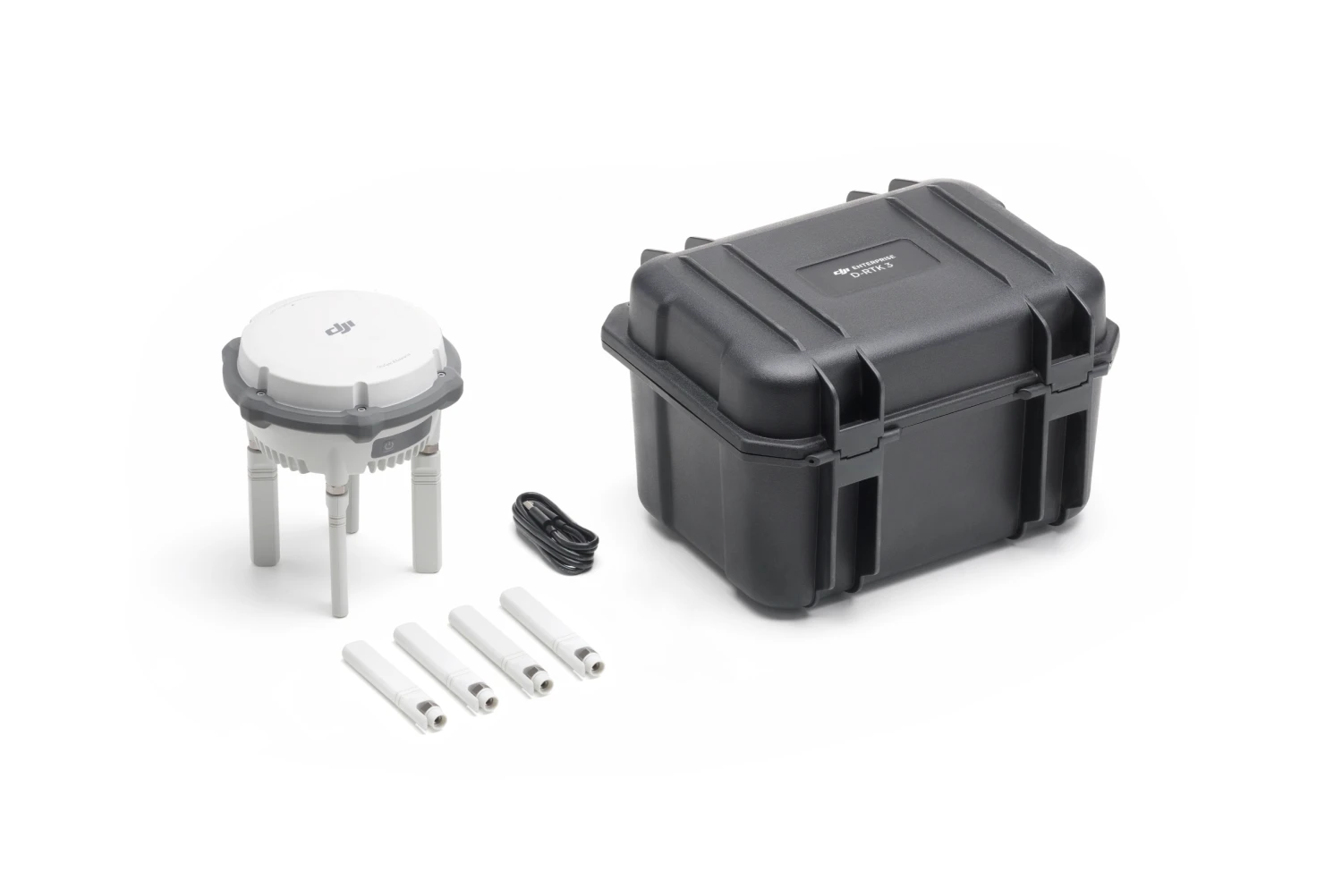

In The Box

D-RTK 3 Multifunctional Station × 1

Spare OcuSync Directional Antennas × 4

USB-A to USB-C Cable× 1

Specifications

GNSS Frequency

GPS: L1C/A, L2C, L5

BDS: B1I, B2I, B3I, B1C, B2a, B2b

Galileo: E1, E5a, E5b, E6

GLONASS: L1, L2

QZSS: L1C/A, L2C, L5

L-Band

Rover Station Mode Accuracy

Static Measurement

Horizontal: 0.8 cm + 1 ppm (RMS)

Vertical: 1.5 cm + 1 ppm (RMS)

Tilt Measurement

Angle Range: 0°to 60°

Horizontal: 8 mm + 0.7 mm/° tilt (accuracy <2 cm within 30°)

Max Transmission Distance (in Relay Station Mode, unobstructed, free of interference)

FCC:

15 km between the aircraft and the relay station

1 km between the relay station and the remote controller

SRRC:

12 km between the aircraft and the relay station

1 km between the relay station and the remote controller

CE:

8 km between the aircraft and the relay station

300 m between the relay station and the remote controller

Protection Rating: IP67 (station only)

Diameter: 163 × 89 mm (without OcuSync Directional Antennas)

Weight: 1.26 kg
